Route 27/244 Interchange Modification Project

Replacing a 75-Year-Old Bridge

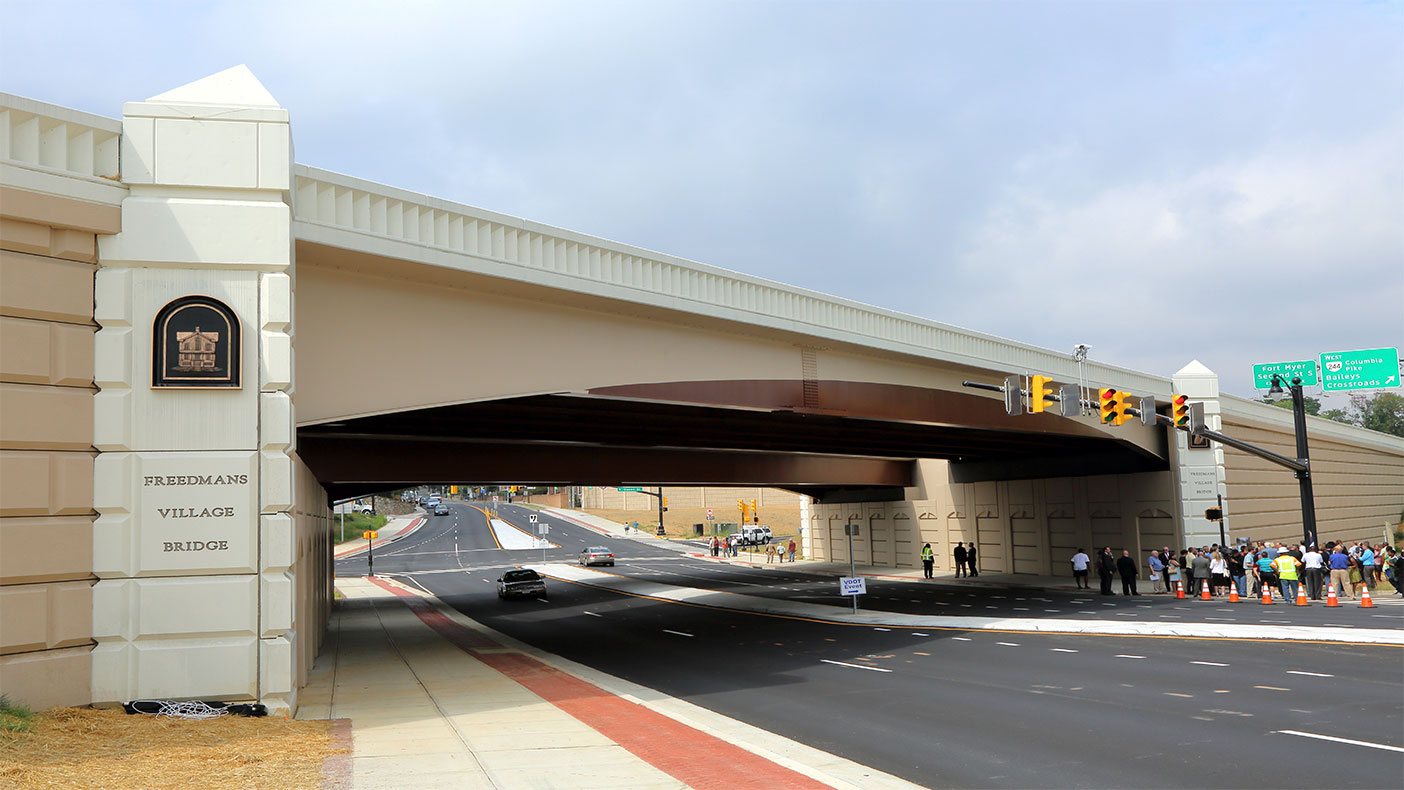

The interchange was reconfigured to improve intersection layouts and access, and improve safety and capacity on Washington Boulevard and Columbia Pike.

The interchange was reconfigured to improve intersection layouts and access, and improve safety and capacity on Washington Boulevard and Columbia Pike.

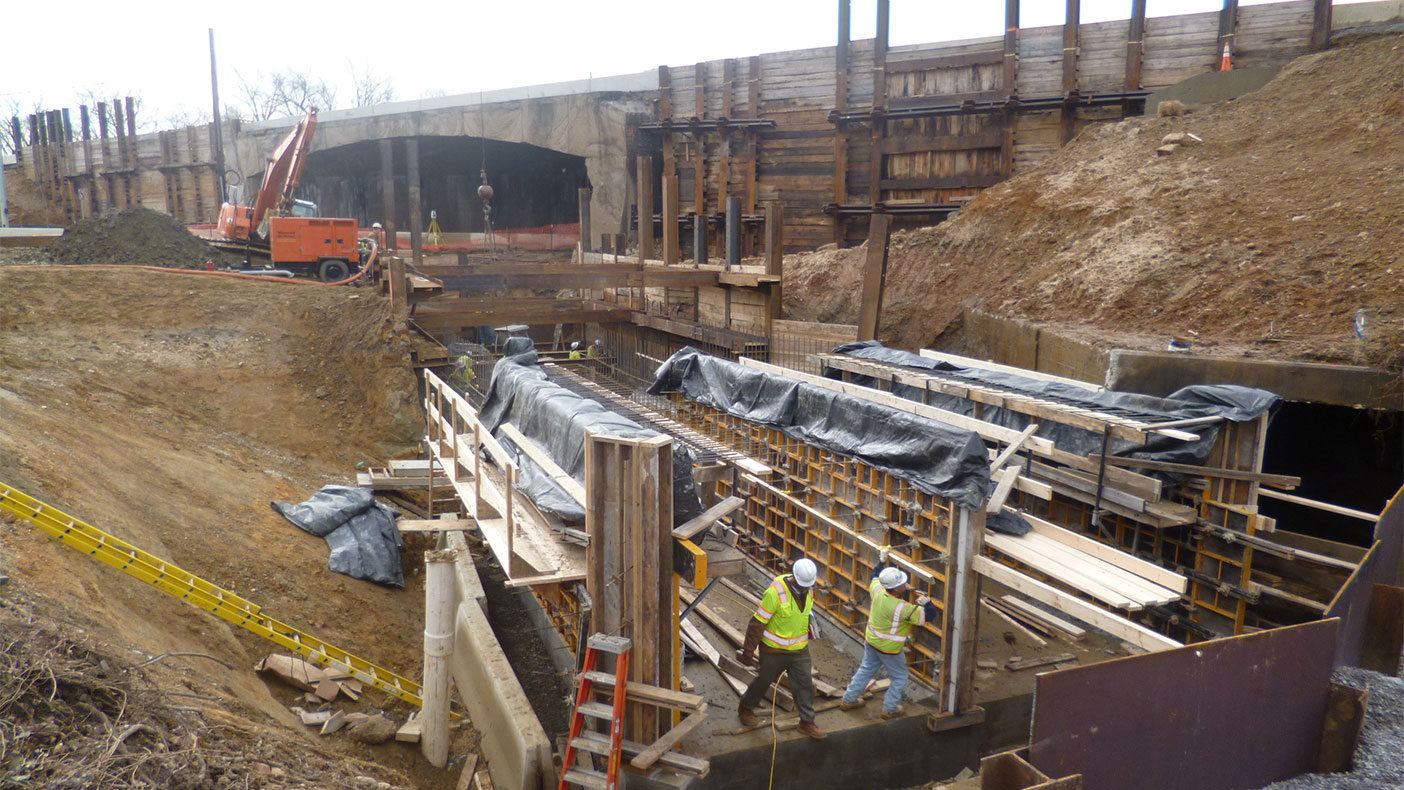

A cast-in-place dual-cell box culvert was constructed through the center of the interchange.

A cast-in-place dual-cell box culvert was constructed through the center of the interchange.

The Freedmans Village Bridge honors a historic community that was once a refuge for freed and fugitive slaves. Bronze medallions depict the village’s headquarters building and an image of a mother and two children.

The Freedmans Village Bridge honors a historic community that was once a refuge for freed and fugitive slaves. Bronze medallions depict the village’s headquarters building and an image of a mother and two children.

Dedication of the Freedmans Village Bridge on September 10, 2015.

Dedication of the Freedmans Village Bridge on September 10, 2015.

Client
VDOT
Location
Arlington County, Virginia
Markets
Transportation
Cost
$48.5 million
Completed
2015
Region
Mid-Atlantic

Route 27/244 Interchange modification project included the complete replacement of the existing Route 27 bridge over Route 244. We provided surveying and full engineering design, serving as the engineer of record for the Shirley design-build team for the Virginia Department of Transportation (VDOT). The project represents the culmination of years of coordination between VDOT, Arlington County, and local citizen groups to replace the bridge, now named the Freedmans Village Bridge, within a historic neighborhood that once served as a community for freed and fugitive slaves.

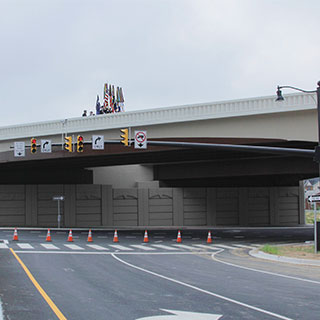

The original single-span concrete arch bridge was constructed in 1942 as part of the Pentagon Roadway Network. Located on Washington Boulevard (Route 27) where it crosses over Columbia Pike (Route 244), the structure was replaced with parallel bridges accommodating four 12-foot travel lanes, an auxiliary lane between ramps, and improved shoulders. The bridge was lengthened to accommodate the addition of turn lanes, a raised median, and pedestrian and bike paths on Columbia Pike; and the interchange was reconfigured to improve operation and safety. Extensive architectural treatments include a concrete block pattern similar to that of the Pentagon, and memorial pylons that feature cast medallions with scenes of the 19th-century village.

2

side-by-side bridges

4

12-foot travel lanes

Awards

  • 2015 Excellence In Infrastructure

    HCCA
