Retro-Commissioning a 150-Year-Old Hospital

New reset schedules for AHU supply air temperature setpoints are now based on outside or return air temperature.

New reset schedules for AHU supply air temperature setpoints are now based on outside or return air temperature.

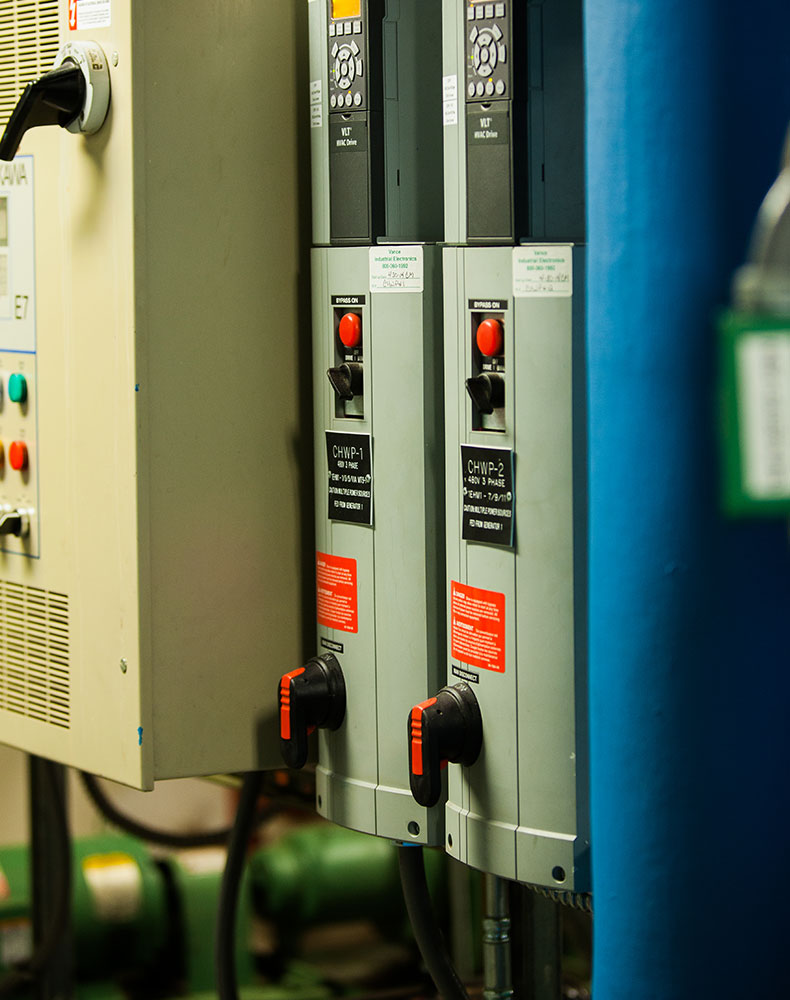

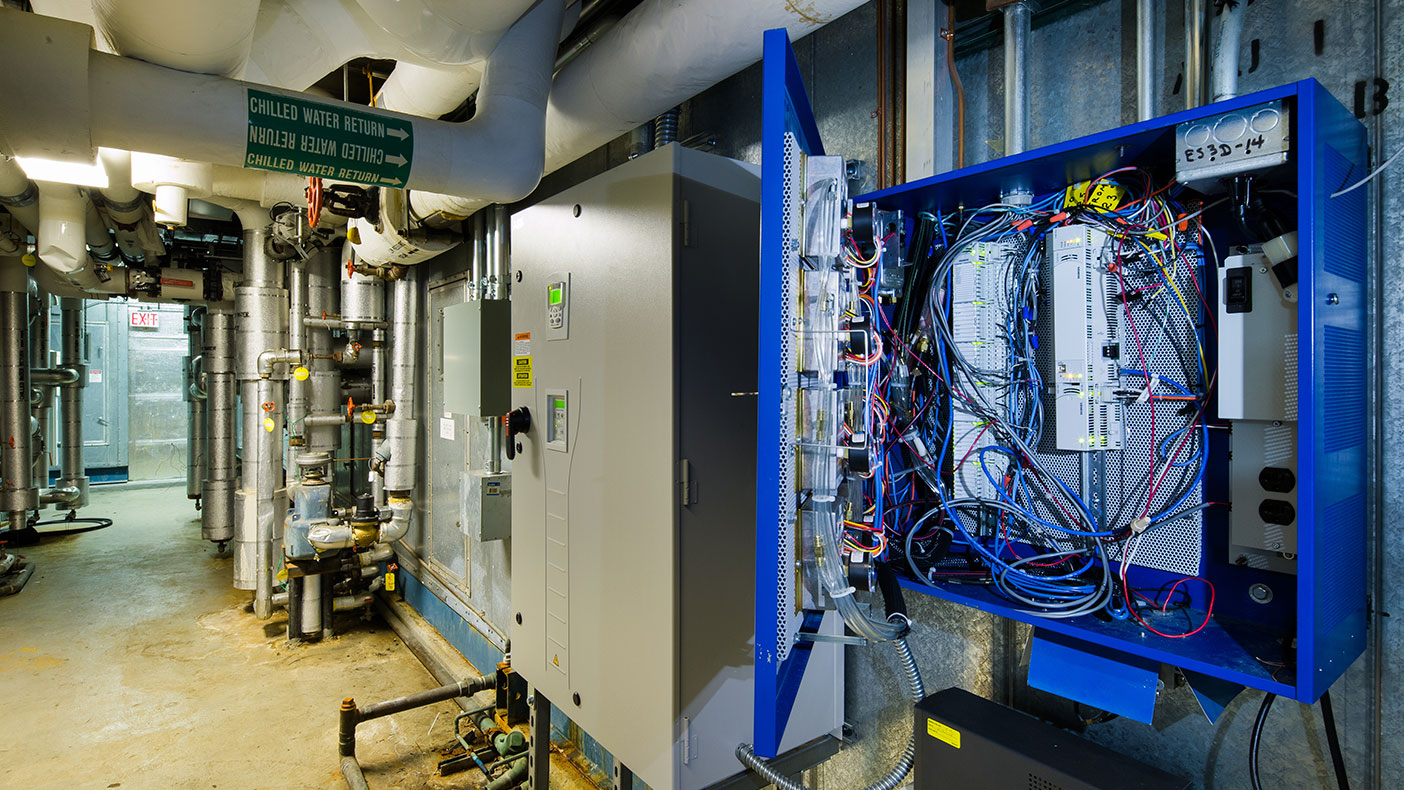

We programmed a condensed water temperature setpoint strategy for a cooling tower that decreased chilled water system energy use and a chilled water supply setpoint reset based on downstream AHU valve positions.

We programmed a condensed water temperature setpoint strategy for a cooling tower that decreased chilled water system energy use and a chilled water supply setpoint reset based on downstream AHU valve positions.

Our repairs included temperature sensor recalibration, override point releases, and control loop tuning.

Our repairs included temperature sensor recalibration, override point releases, and control loop tuning.

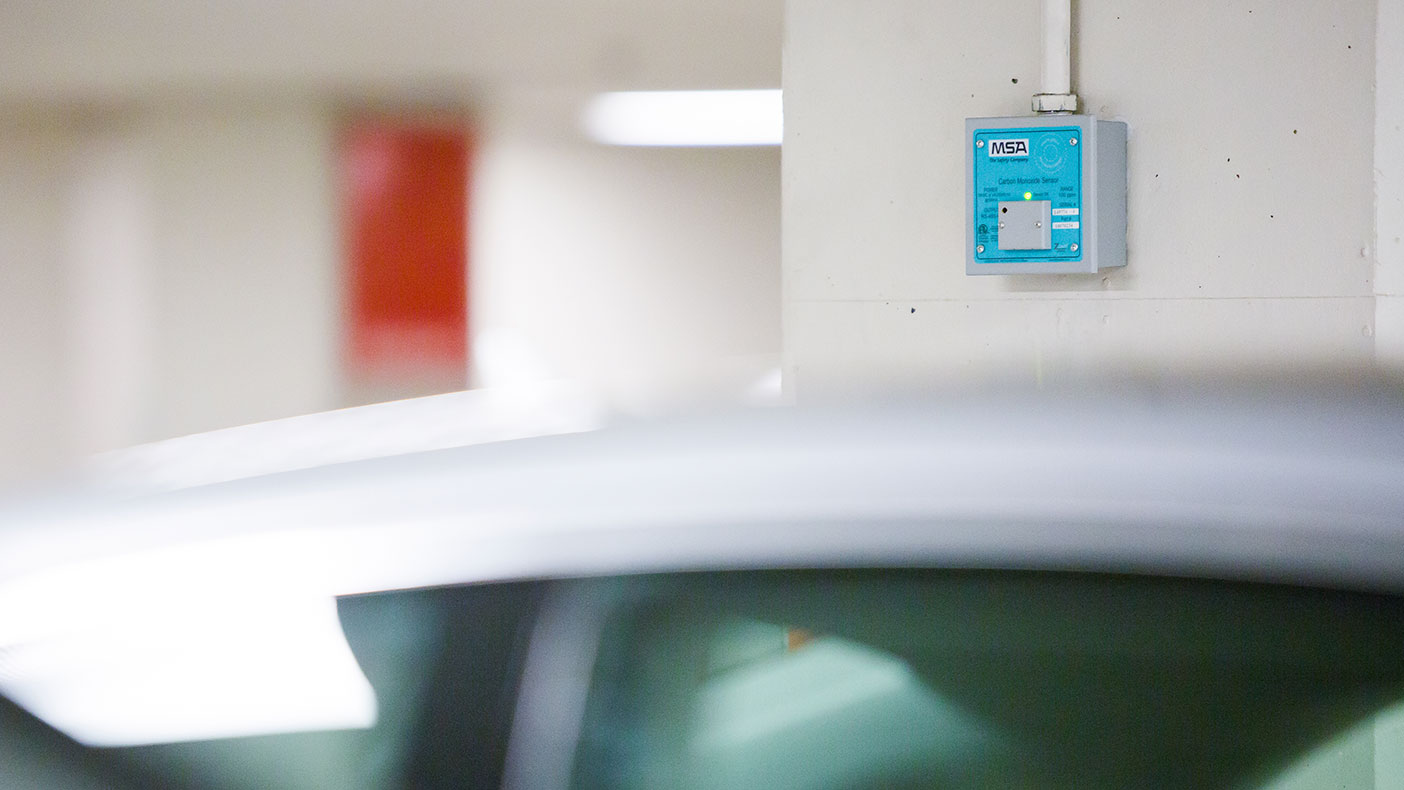

We replaced carbon dioxide sensors throughout the facility, including the parking garages.

We replaced carbon dioxide sensors throughout the facility, including the parking garages.

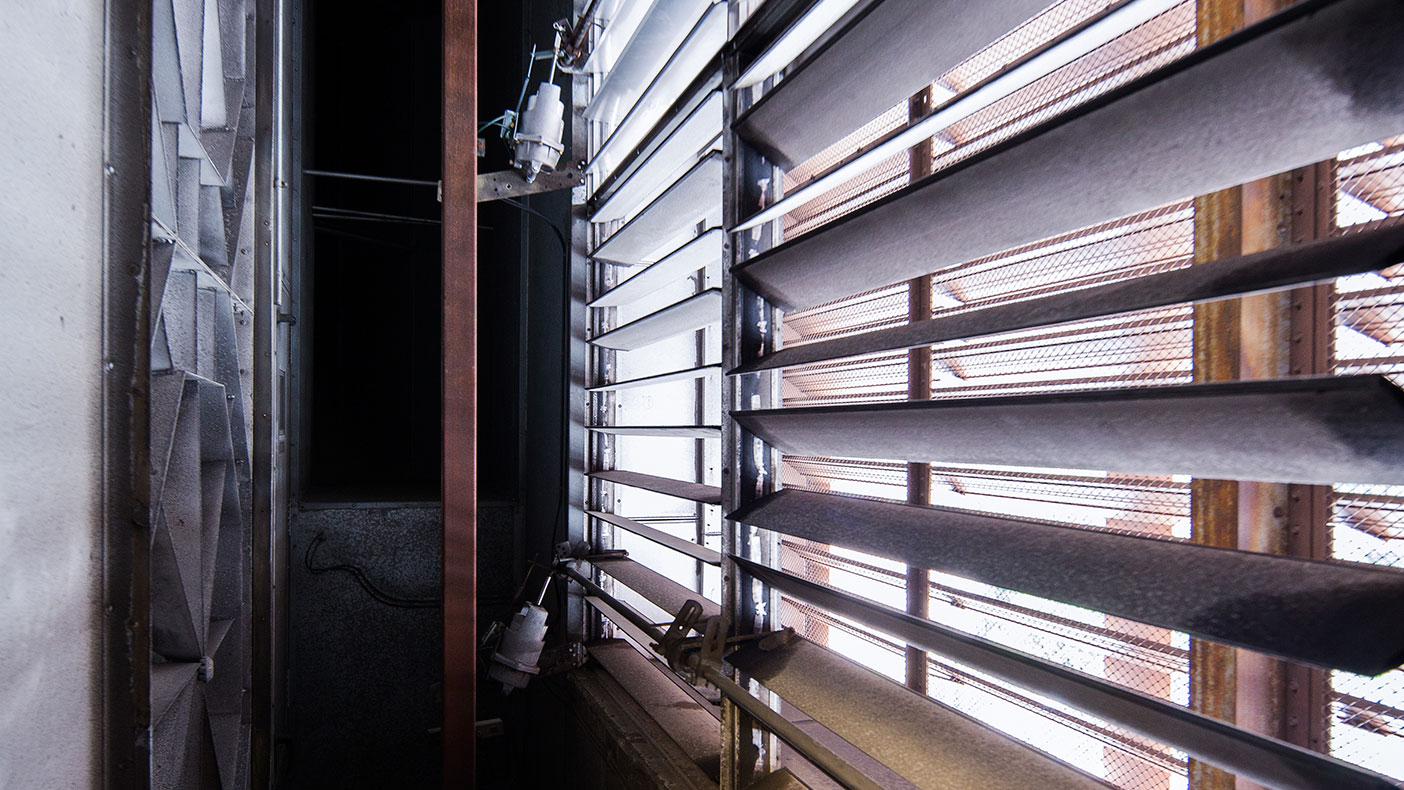

New damper sensors helped us standardize and optimize more than 20 AHU economizer sequences.

New damper sensors helped us standardize and optimize more than 20 AHU economizer sequences.

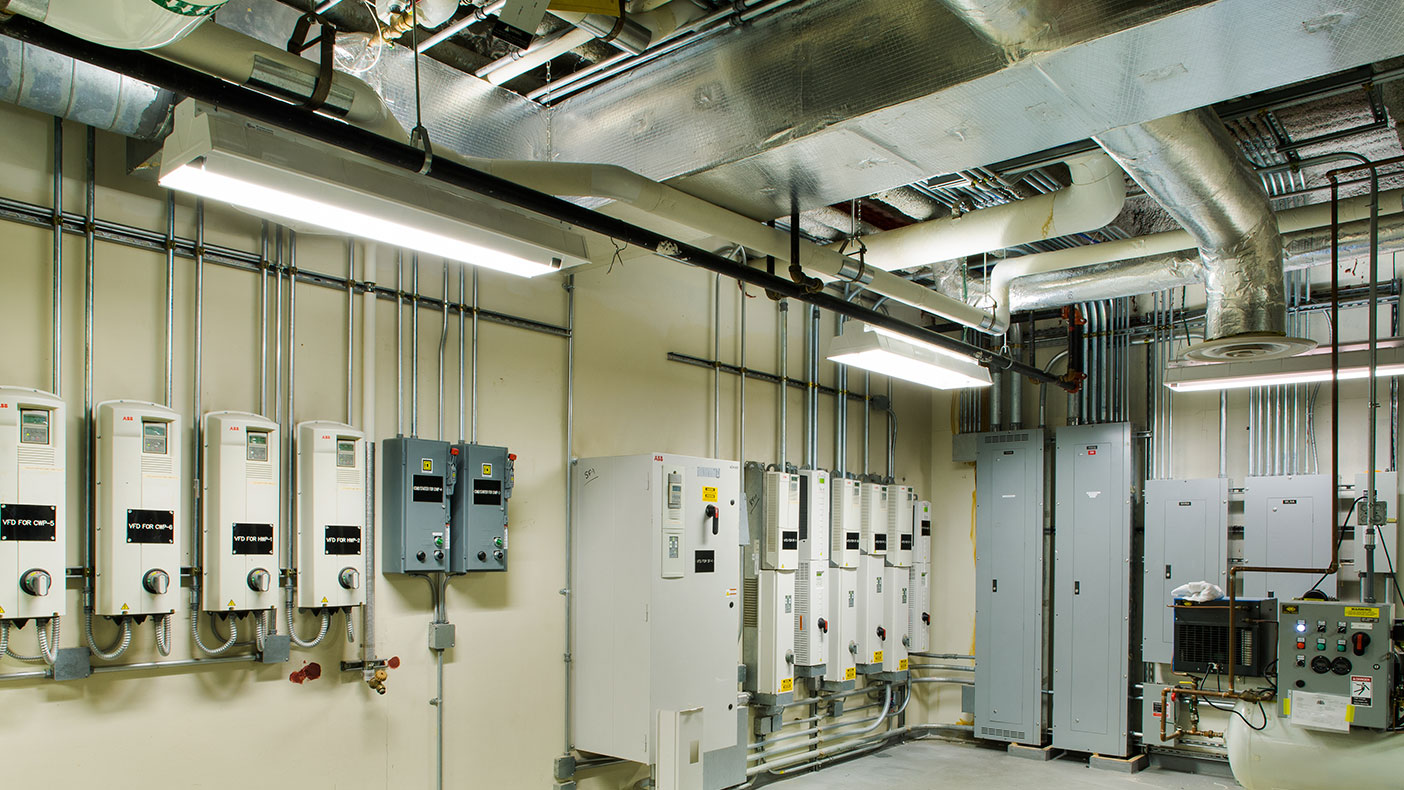

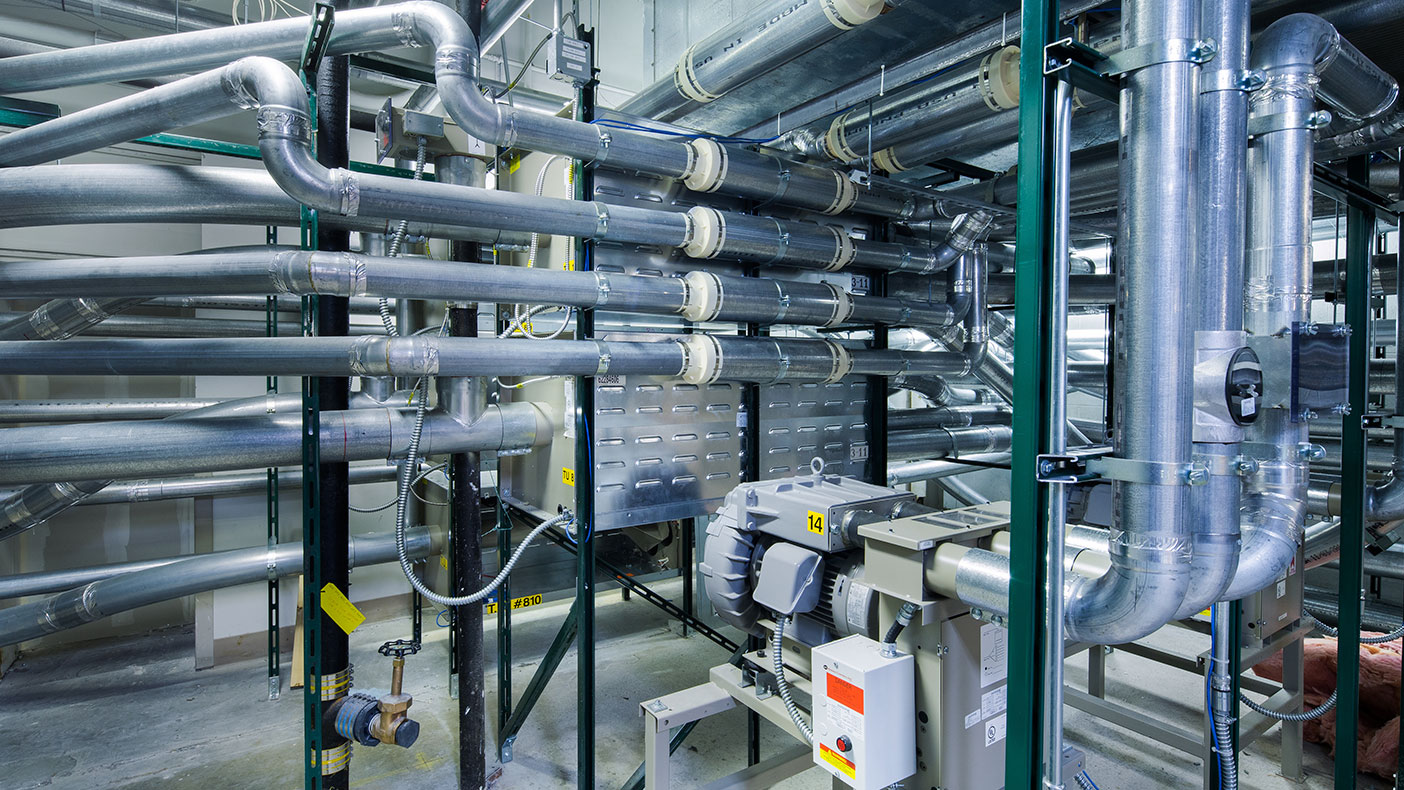

VFD-upgraded laboratory vane air flow control systems feature new motors and modified system controls and parameters that correct inefficient overrides.

VFD-upgraded laboratory vane air flow control systems feature new motors and modified system controls and parameters that correct inefficient overrides.

We reprogrammed and optimized AHU face and bypass steam coil operations.

We reprogrammed and optimized AHU face and bypass steam coil operations.

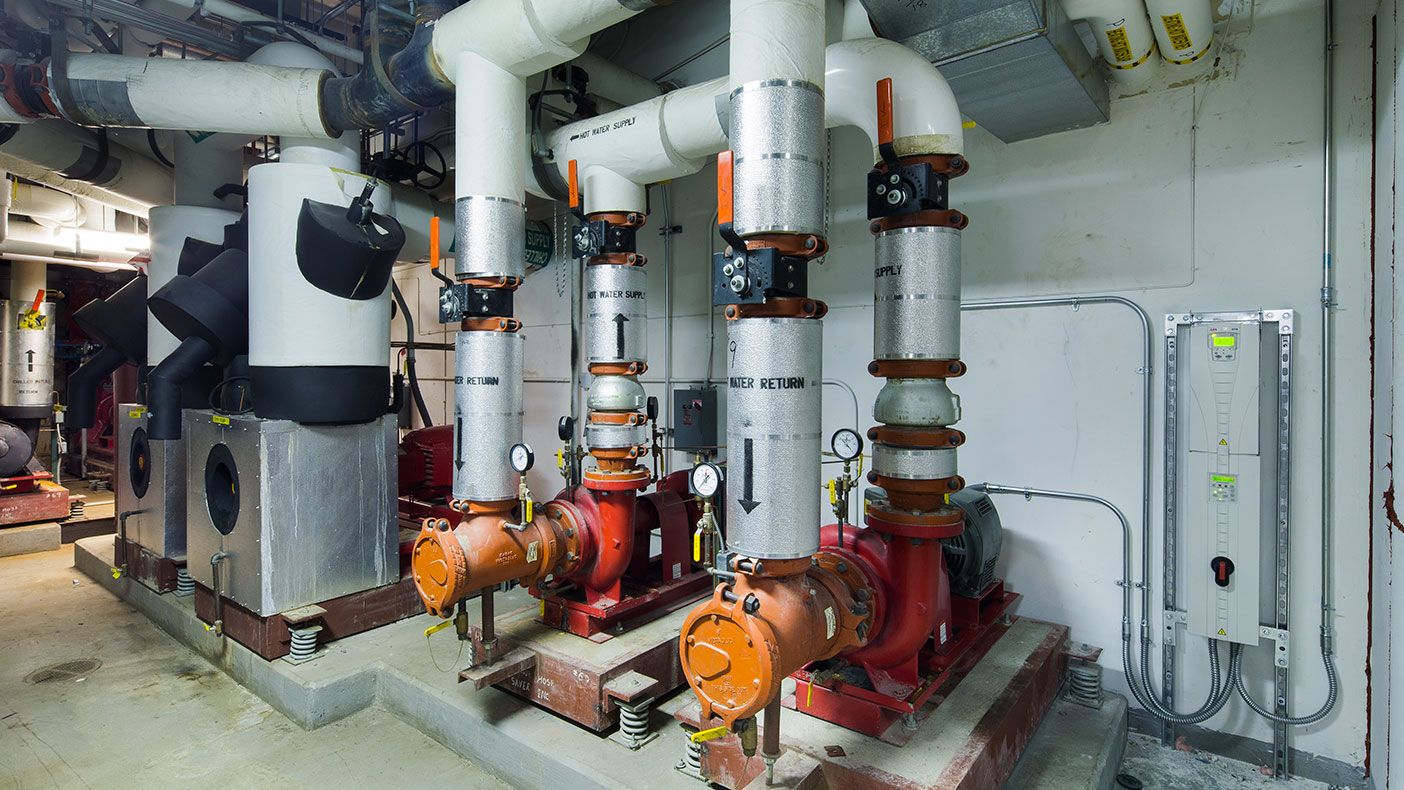

Two optimized hot water systems now modulate speed based on differential setpoint pressure.

Two optimized hot water systems now modulate speed based on differential setpoint pressure.

UPMC Shadyside serves Pittsburgh's primary care, physician and nursing education, cardiology, oncology, orthopedic, geriatric, gynecology, vascular, and endocrinology needs.

UPMC Shadyside serves Pittsburgh's primary care, physician and nursing education, cardiology, oncology, orthopedic, geriatric, gynecology, vascular, and endocrinology needs.

Owner/Client
University of Pittsburgh Medical Center
Location
Pittsburgh, Pennsylvania
Square Footage
1,000,000 SF
Cost
$1.14 million
Completed
2015
Region
Northeast

We retro-commissioned the University of Pittsburgh Medical Center’s (UPMC) 520-bed Shadyside Hospital. After investigating operations and equipment through observation, functional testing, and diagnostic monitoring, we recommended and implemented seven energy-reduction strategies:

  • Water-side testing, adjusting, and balancing (TAB)
  • Terminal unit scheduling
  • Air handing unit (AHU) scheduling and control optimization
  • Air system variable frequency drive (VFD) installation
  • Hot water system VFD installation and controls reprogramming
  • Chilled water system optimization
  • Operating room unoccupied mode scheduling

Following construction, we scheduled a measurement and verification (M&V) period to track energy savings and developed a real-time building layout for performance evaluation.

2,373,000 kWh

annual electrical energy savings

190,190 therms

annual gas savings

$264,5620

total annual savings
