Redwood Road Emergency Culvert Replacement

Replacing Large Pipes and Repairing Roadway in a Reservoir

We developed an alternatives analysis of the feasibility of working in dry versus wet conditions, and reported on why the wet-excavation method of construction was the better solution for this site.

We developed an alternatives analysis of the feasibility of working in dry versus wet conditions, and reported on why the wet-excavation method of construction was the better solution for this site.

The report included supporting calculations for flow, volume, preferred sediment loss, site photos, vicinity map, detour map, typical section, cost estimate, and a roadway plan and profile sheet.

The report included supporting calculations for flow, volume, preferred sediment loss, site photos, vicinity map, detour map, typical section, cost estimate, and a roadway plan and profile sheet.

Phase II plans included traffic and erosion control, utility relocation, stormwater management, and structure and roadway plans, and permit drawings.

Phase II plans included traffic and erosion control, utility relocation, stormwater management, and structure and roadway plans, and permit drawings.

Client
NCDOT
Location
Durham County, North Carolina
Markets
Transportation
Cost
$80,000
Completed
2017
Region
Southeast

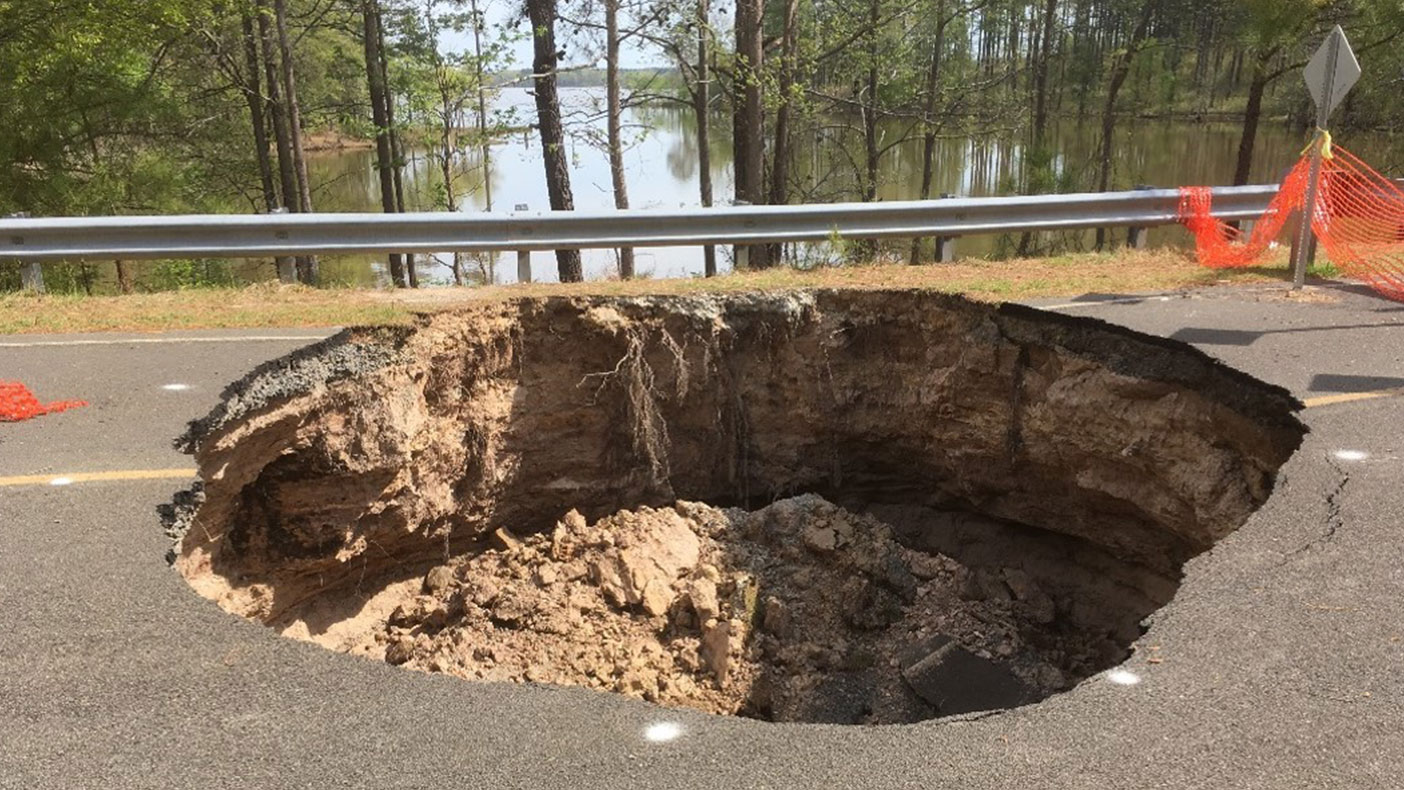

Hurricane Matthew destroyed a portion of Redwood Road in Durham, North Carolina, and caused a culvert under the road to fail at the causeway over Panther Creek, in the backwater of the Falls Lake Reservoir. The road was almost completely breeched, so the North Carolina Department of Transportation (NCDOT) took emergency action to protect and stabilize the causeway. Under an on-call contract, we performed a quick study and were able to recommend and design a solution that helped NCDOT minimize environmental impacts to the area.

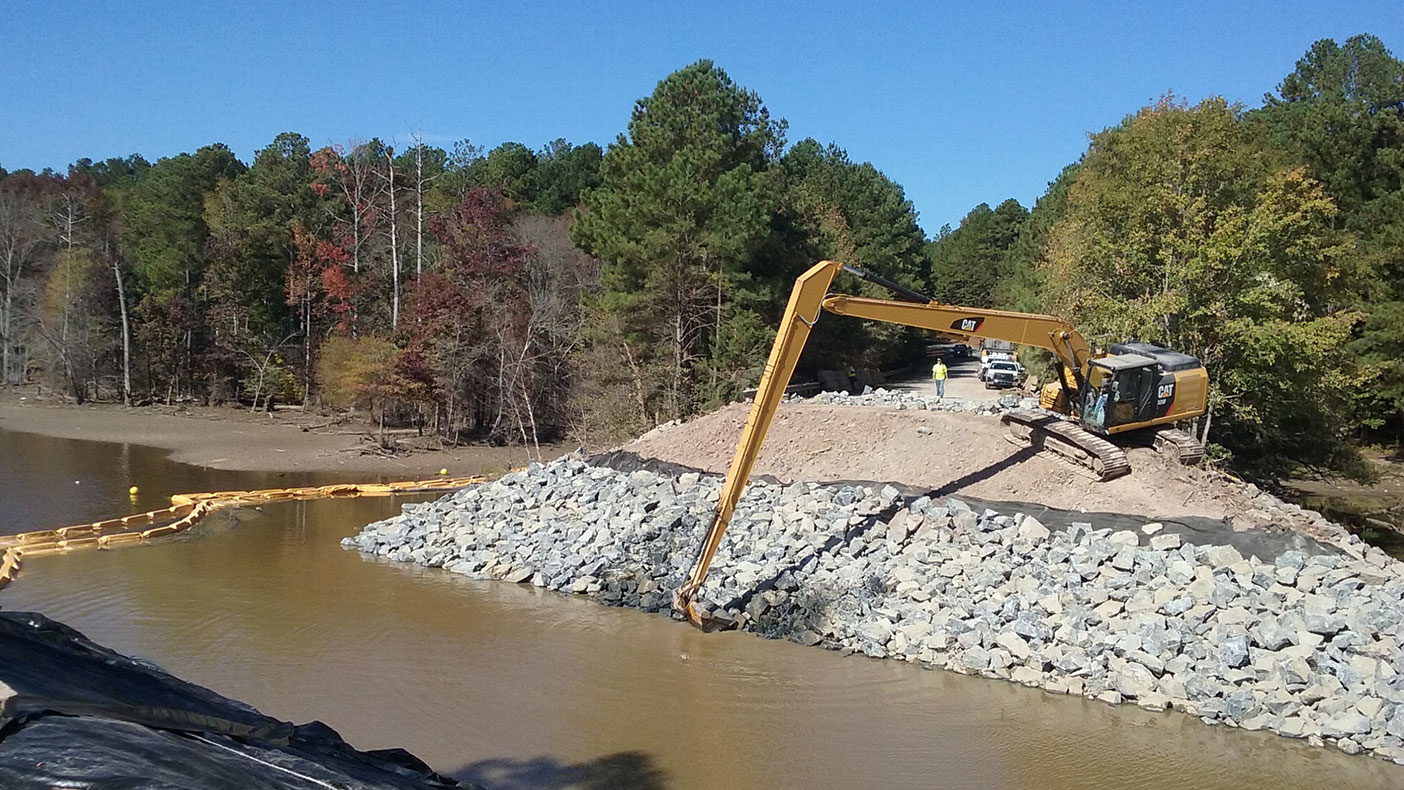

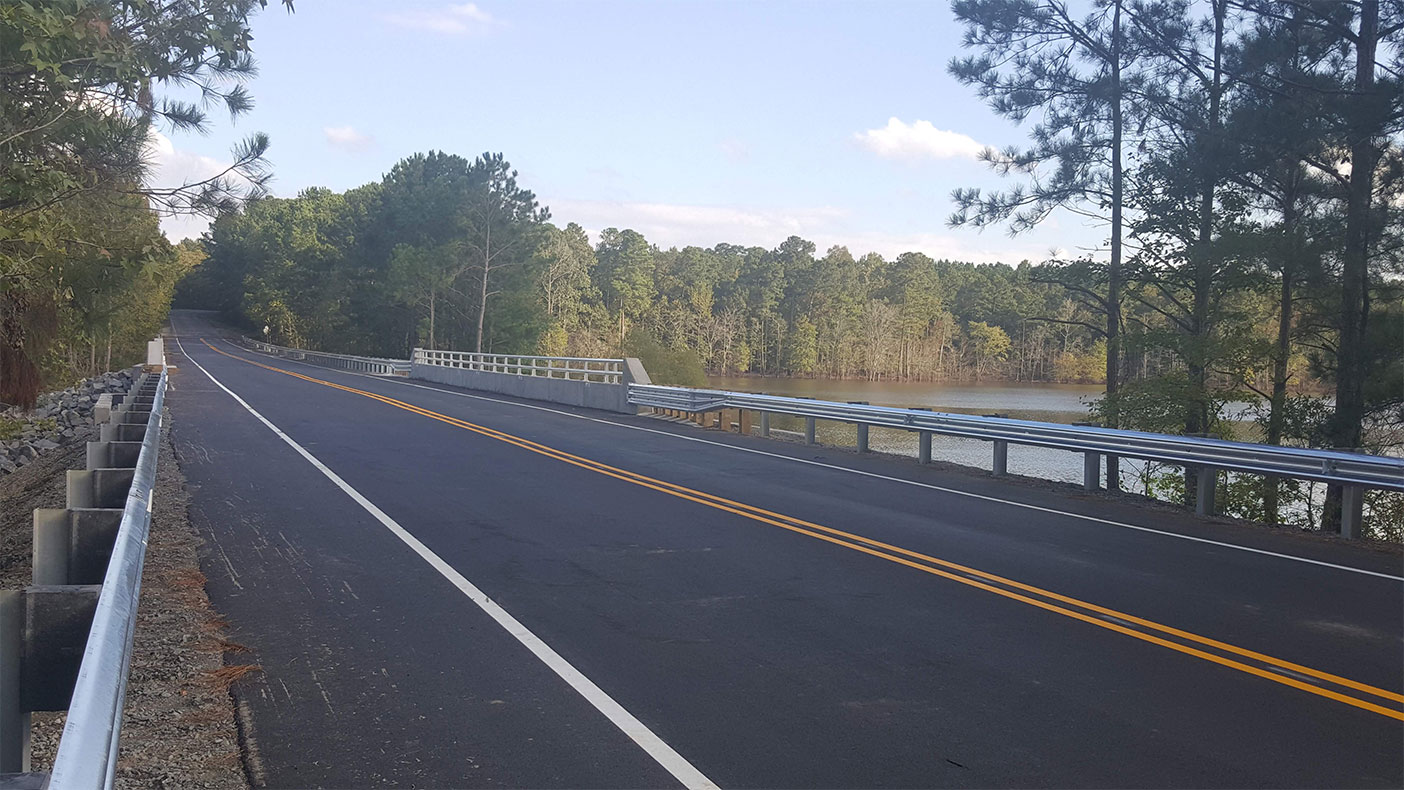

We performed planning, National Environmental Protection Act (NEPA) coordination, permitting support, utility coordination, construction study, and bridge and roadway design services for replacement of the existing double 10-foot metal pipes with a new 105-foot-long box beam bridge on Redwood Road. The bridge channel excavated through the causeway created a new recreational boating access to Panther Creek. The project included the relatively rare use of wet-excavation methods in the open waters of a reservoir permitted by the U.S. Army Corps of Engineers (USACE), and the final design continued access for a state-designated primary recreational hiking and biking routes (including the popular Mountains-to-Sea Trail) and to an adjacent wildlife preserve.

105

foot-long box beam bridge
