Labcorp – Birmingham

Updated Lab Space in Historic Downtown Building

New waste, acid waste, vent, cold water, hot water, DI water, lab gas, and compressed air piping was installed in the building.

New waste, acid waste, vent, cold water, hot water, DI water, lab gas, and compressed air piping was installed in the building.

We routed lab exhaust ductwork to roof-mounted exhaust fans.

We routed lab exhaust ductwork to roof-mounted exhaust fans.

In some instances, we installed new ductwork before the existing ductwork was removed to coincide with phased construction.

In some instances, we installed new ductwork before the existing ductwork was removed to coincide with phased construction.

Client
Williams Blackstock Architects
Location
Birmingham, Alabama
Services
Engineering
Markets
Industrial
Region
Southeast

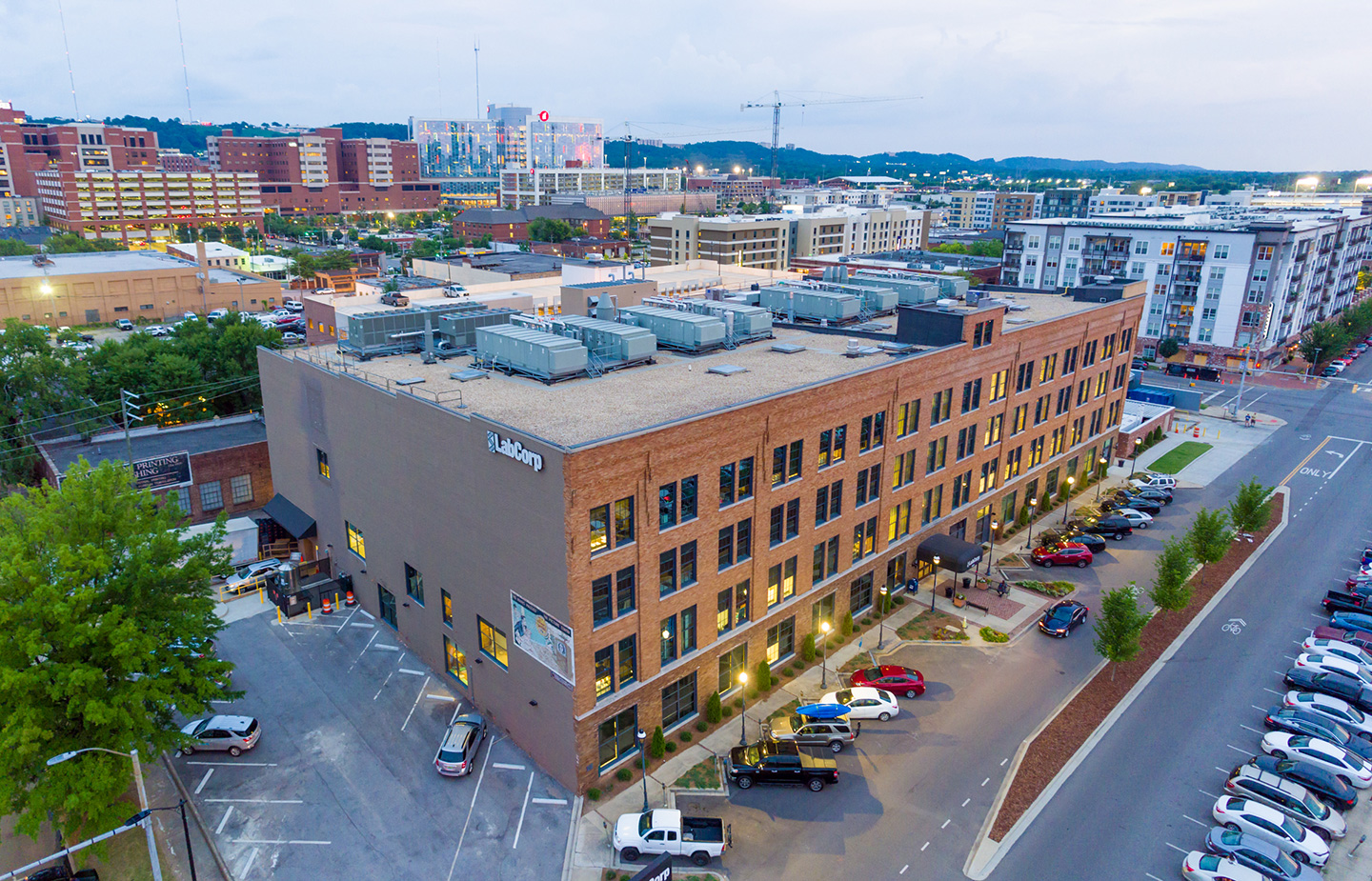

The LabCorp central office in Birmingham, Alabama, is located in a historic building in downtown that’s more than 100 years old. Made of heavy timber frame construction, the four floors total approximately 150,000 square feet. We provided mechanical, electrical, plumbing, and fire protection (MEP/FP) engineering services for a complete upgrade. The facility is approximately 80% lab or lab support space, and we performed the upgrades with limited operational interruptions.

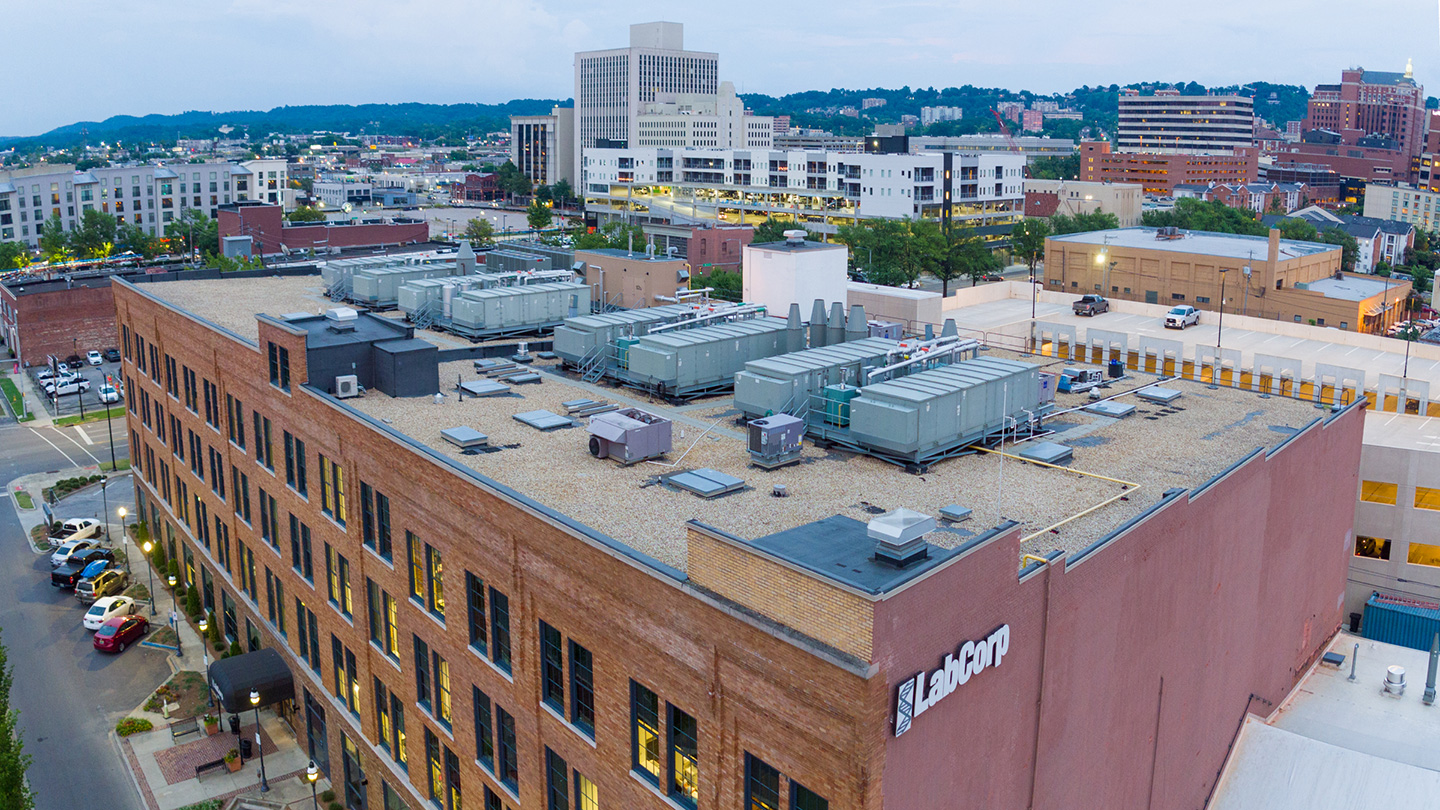

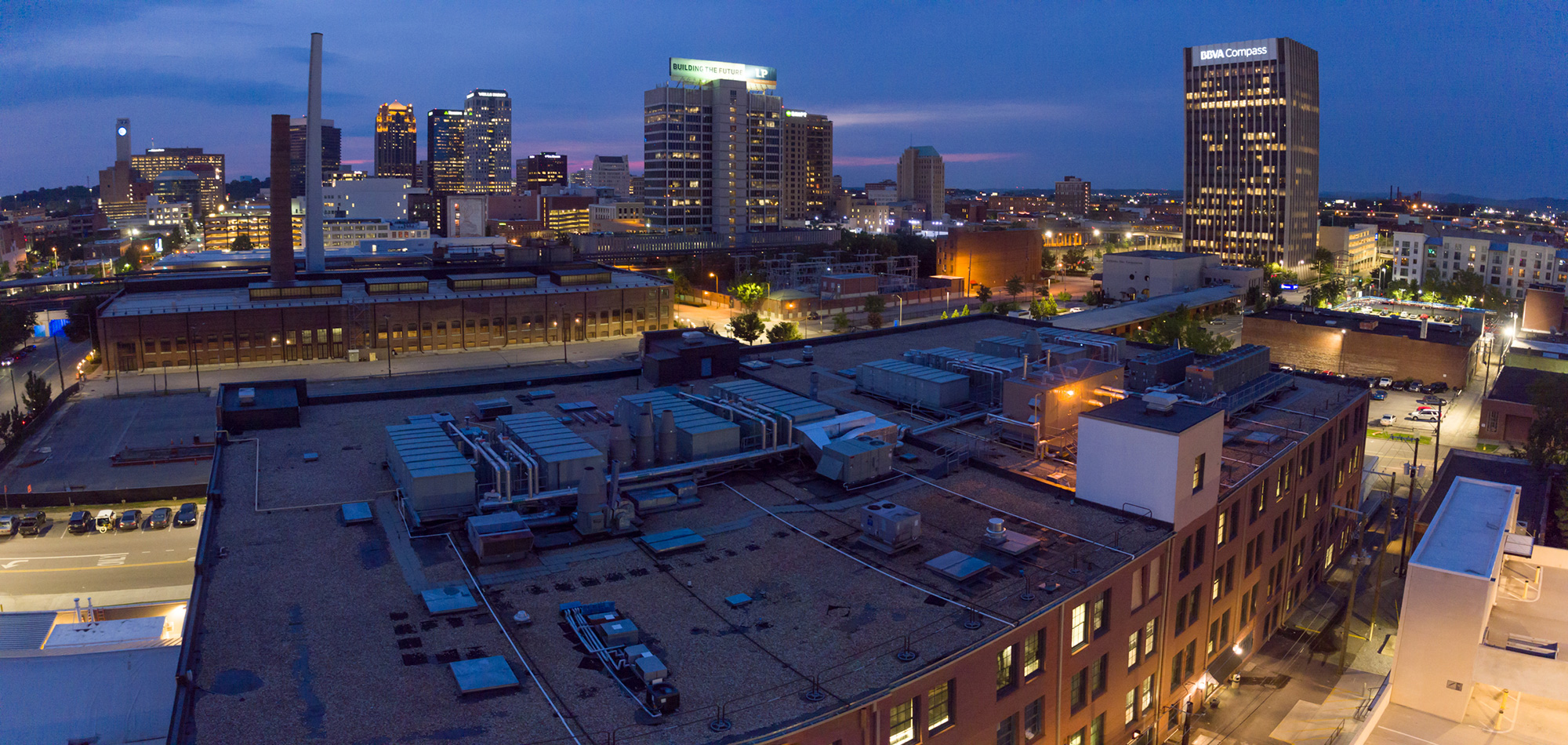

The existing heating, ventilation, and air conditioning (HVAC) system consisted of more than 30 packaged rooftop air conditioning (AC) units. Most of the AC units were at the end of their useful life expectancy. All rooftop AC units and all existing supply, return, and exhaust ductwork were removed and a new four-pipe system with air-cooled chillers, gas-fired boilers, and variable air volume (VAV) air handlers were installed. Due to the nature of the existing wood structure, all new HVAC equipment on the roof was installed on an elevated galvanized steel structure. To expedite design and construction, a pre-fabricated boiler penthouse was used. The boiler penthouse contains two condensing gas-fired boilers, hot water pumps, and chilled water pumps.

Edmonds Engineering, Inc., acquired by Dewberry Engineers Inc. in 2021, performed this work.

4

pipe system

100+

year-old building

80%

lab or lab support space
