John Young Parkway

Designing a Roadway Extension for a Constrained Area

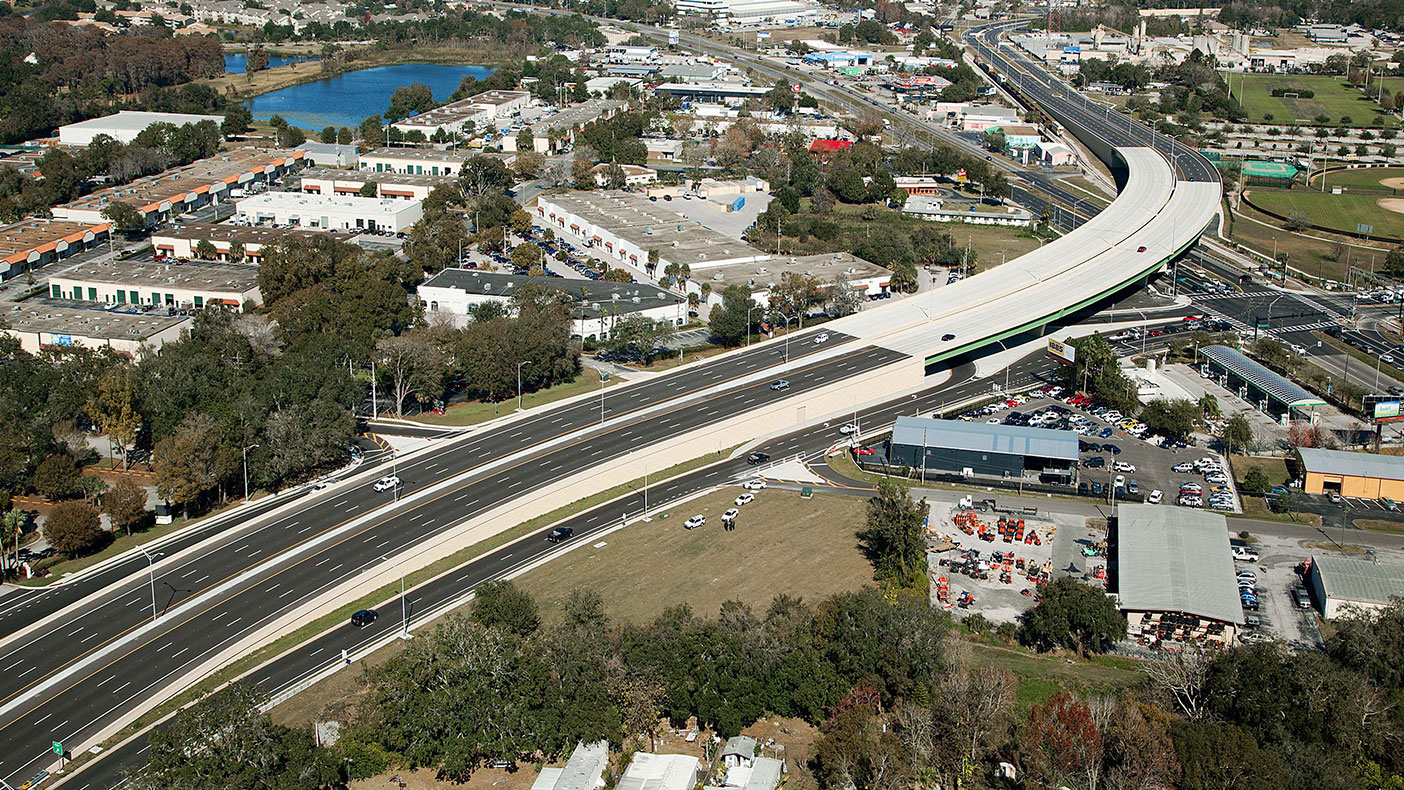

The John Young Parkway extension included new alignments, milling, resurfacing, and major bridge construction.

The John Young Parkway extension included new alignments, milling, resurfacing, and major bridge construction.

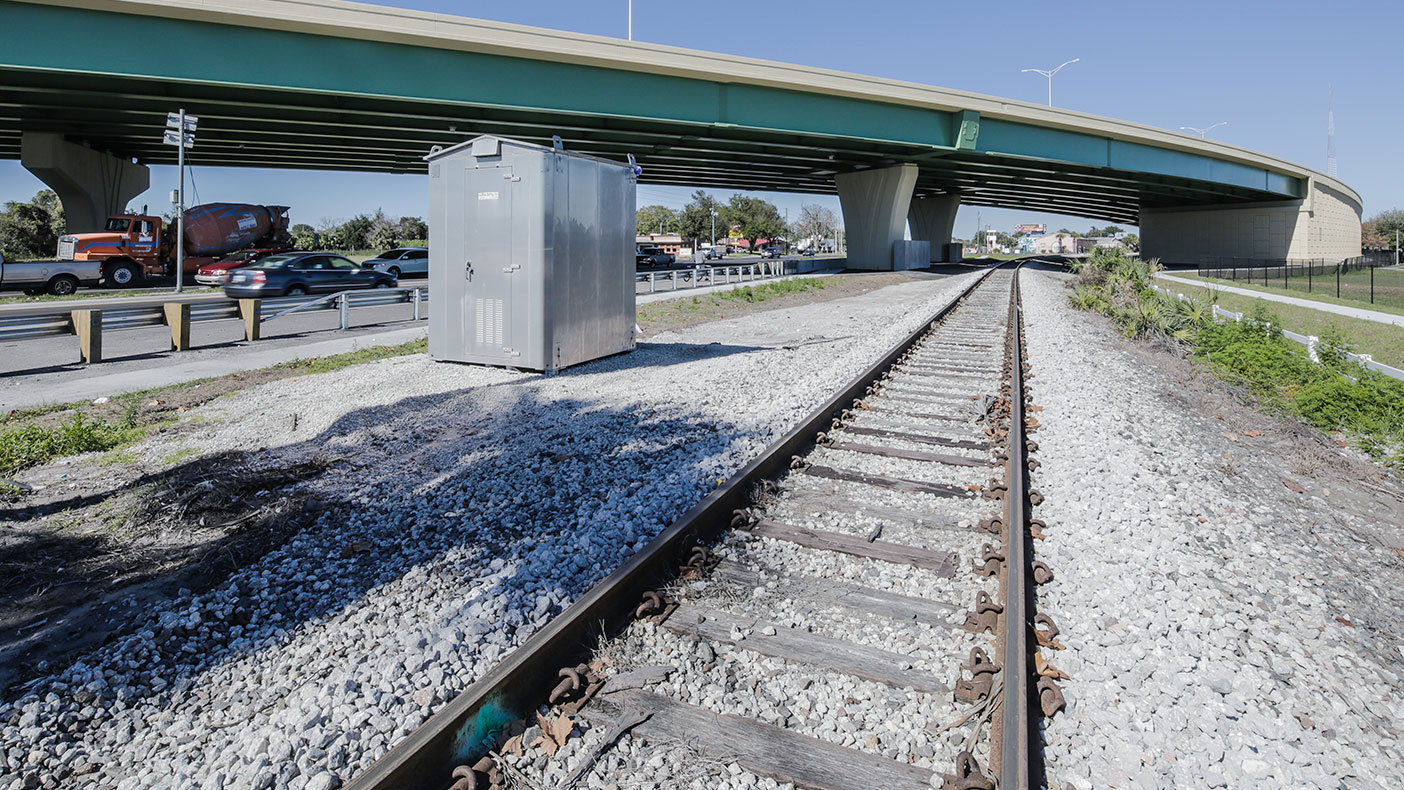

By using steel interval caps, we were able to increase bridge clearance over the Central Florida Railroad line by almost six feet.

By using steel interval caps, we were able to increase bridge clearance over the Central Florida Railroad line by almost six feet.

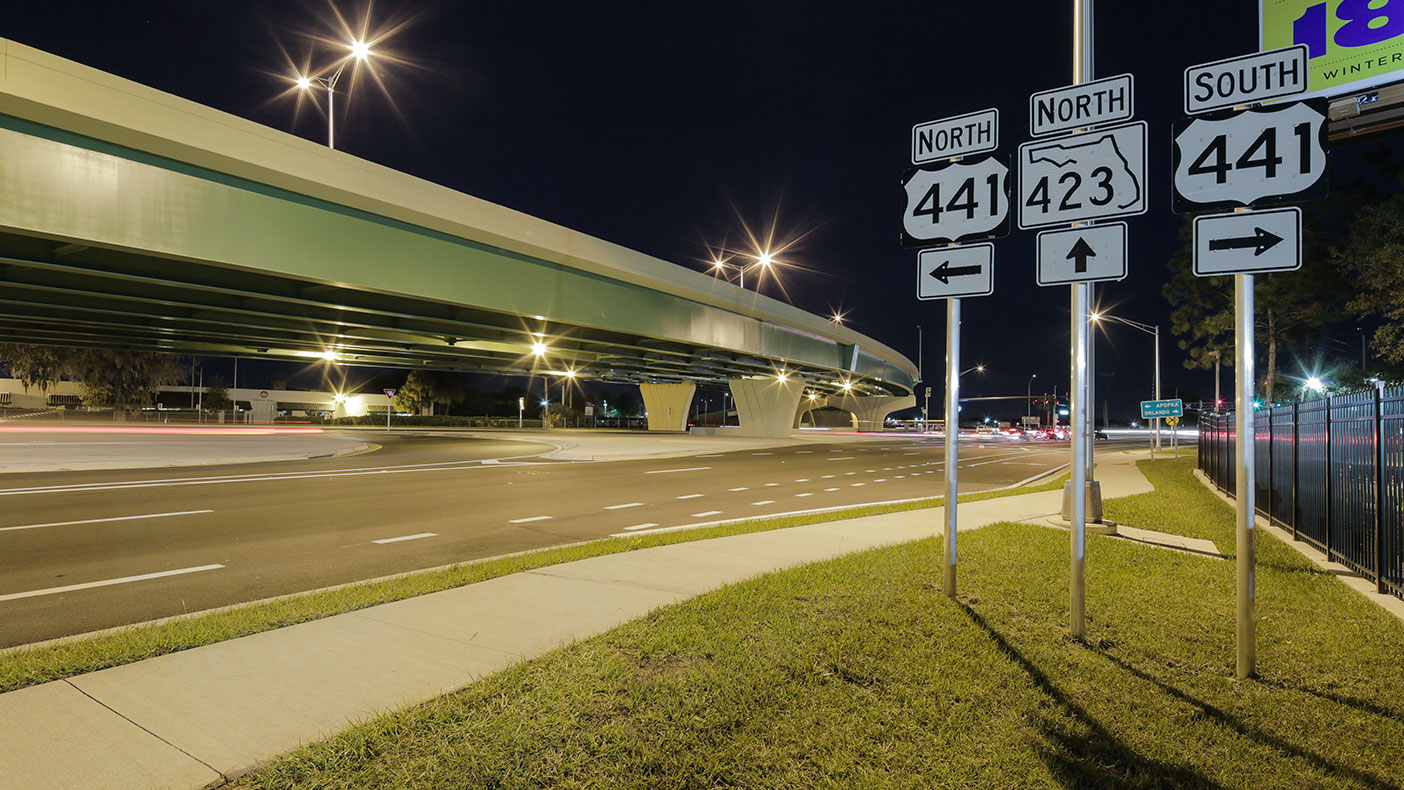

The project included noise and retaining walls, signing and pavement markings, lighting, and sidewalks.

The project included noise and retaining walls, signing and pavement markings, lighting, and sidewalks.

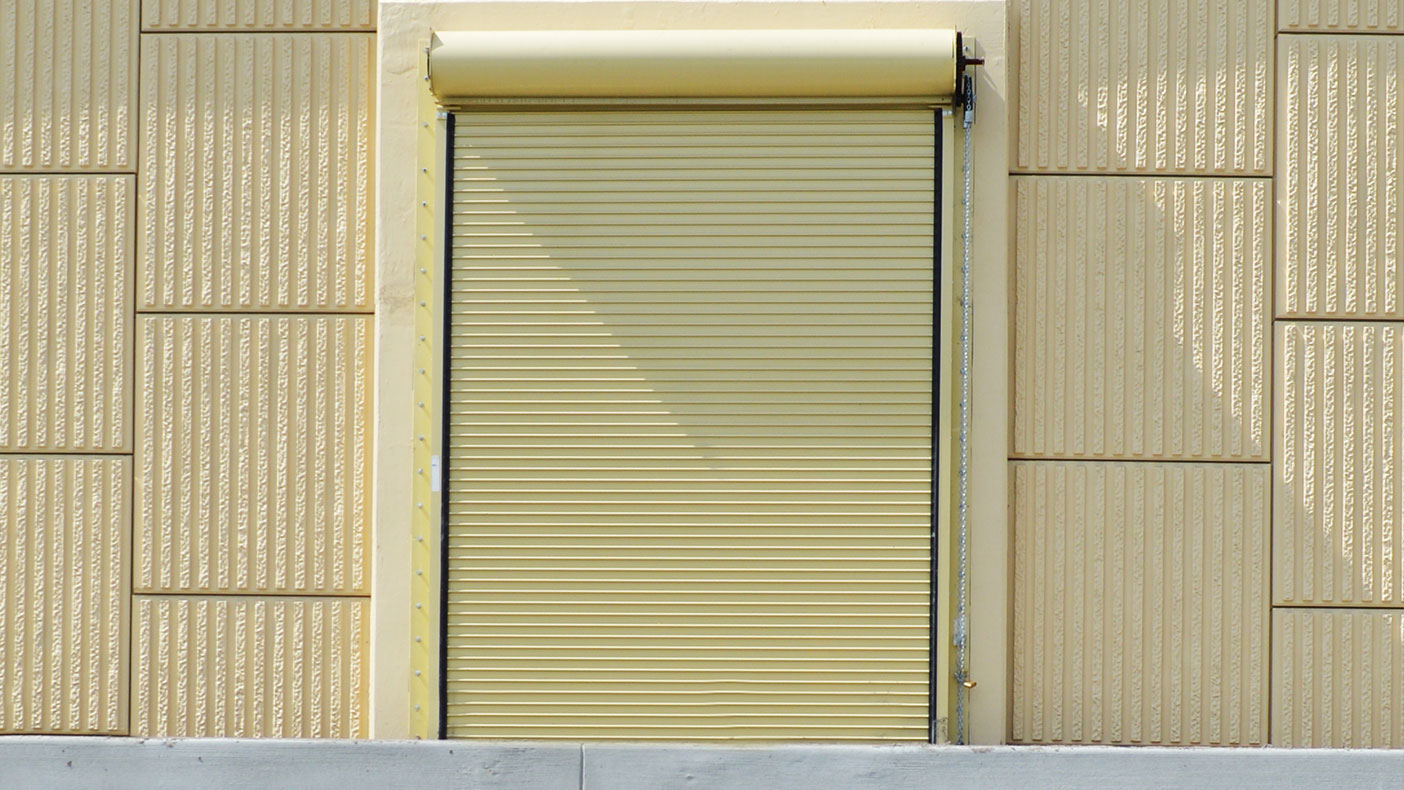

The entrance to the utility access tunnel was painted over to blend in with the features of the embankment, a solution that saved the fiber optics provider nearly $1 million.

The entrance to the utility access tunnel was painted over to blend in with the features of the embankment, a solution that saved the fiber optics provider nearly $1 million.

"This project features innovative solutions that increase mobility, safety and connectivity in the region." –Alan Hyman, Florida DOT Dir. of Transportation Operations

"This project features innovative solutions that increase mobility, safety and connectivity in the region." –Alan Hyman, Florida DOT Dir. of Transportation Operations

Client
Southland Construction, Inc.
Owner
Florida Department of Transportation
Location
Orlando, Florida
Services
Engineering
Markets
Transportation
Mileage
2 miles
Cost
$41 million
Completed
2013
Region
Southeast

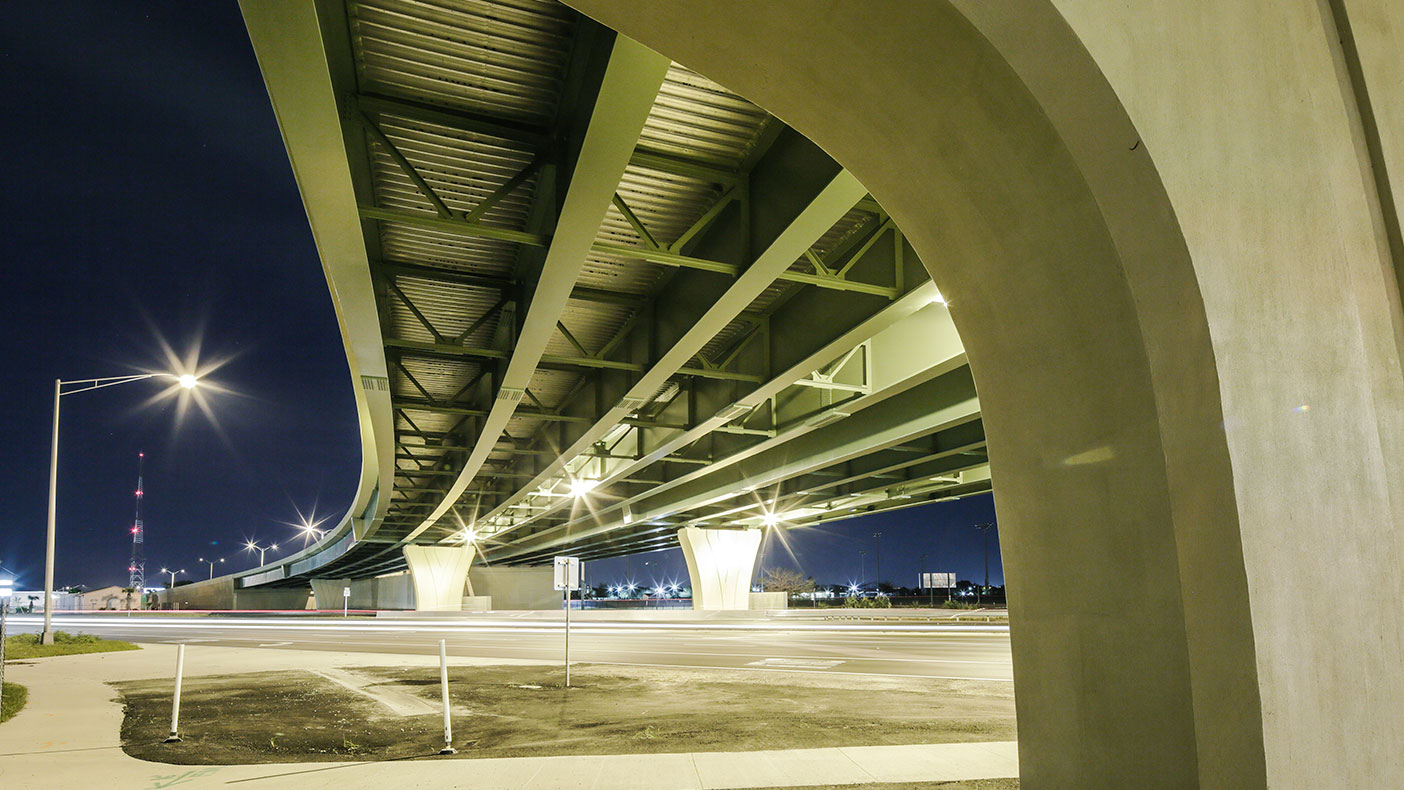

Florida DOT estimated a significant increase in daily vehicle use on a four-lane stretch of the John Young Parkway in Orange County, Florida. We teamed with Southland Construction on this design-build project to widen, reconstruct, and add a new alignment extension to the roadway. The project also included converting an existing at-grade intersection into an urban interchange. The original design for the two new flyover bridges included post-tensioned cast-in-place concrete integral intermediate piers, but construction would require major traffic detours that would only be permitted during certain time frames. Instead, we designed steel-plate boxes for the cap, which lowered the bridge’s vertical profile, matched the bridges’ steel girders, and allowed us to construct the bridge in sections that greatly reduced the need for detours.

While we were able to relocate four major utilities, our plans would bury an access manhole to a major fiber optics provider beneath 25 feet of embankment at the bridge approach. We designed an access door and tunnel directly into the side of the approach retaining wall that allowed the utilities to stay in place, saving the fiber optics provider nearly $1 million and six months of contract time.

4

major utilities relocated

2

awards recognizing project

Awards

  • Best in Construction Urban Project

    Florida Transportation Builders Association

  • Best in Construction Major Bridge

    Florida Transportation Builders Association
