I-95/Telegraph Road Interchange

Designing Better Roads and Safety Trails

Six major stages and 16 sub-phases helped create a construction sequence that maintained all existing lanes and minimized commuter disruptions.

Six major stages and 16 sub-phases helped create a construction sequence that maintained all existing lanes and minimized commuter disruptions.

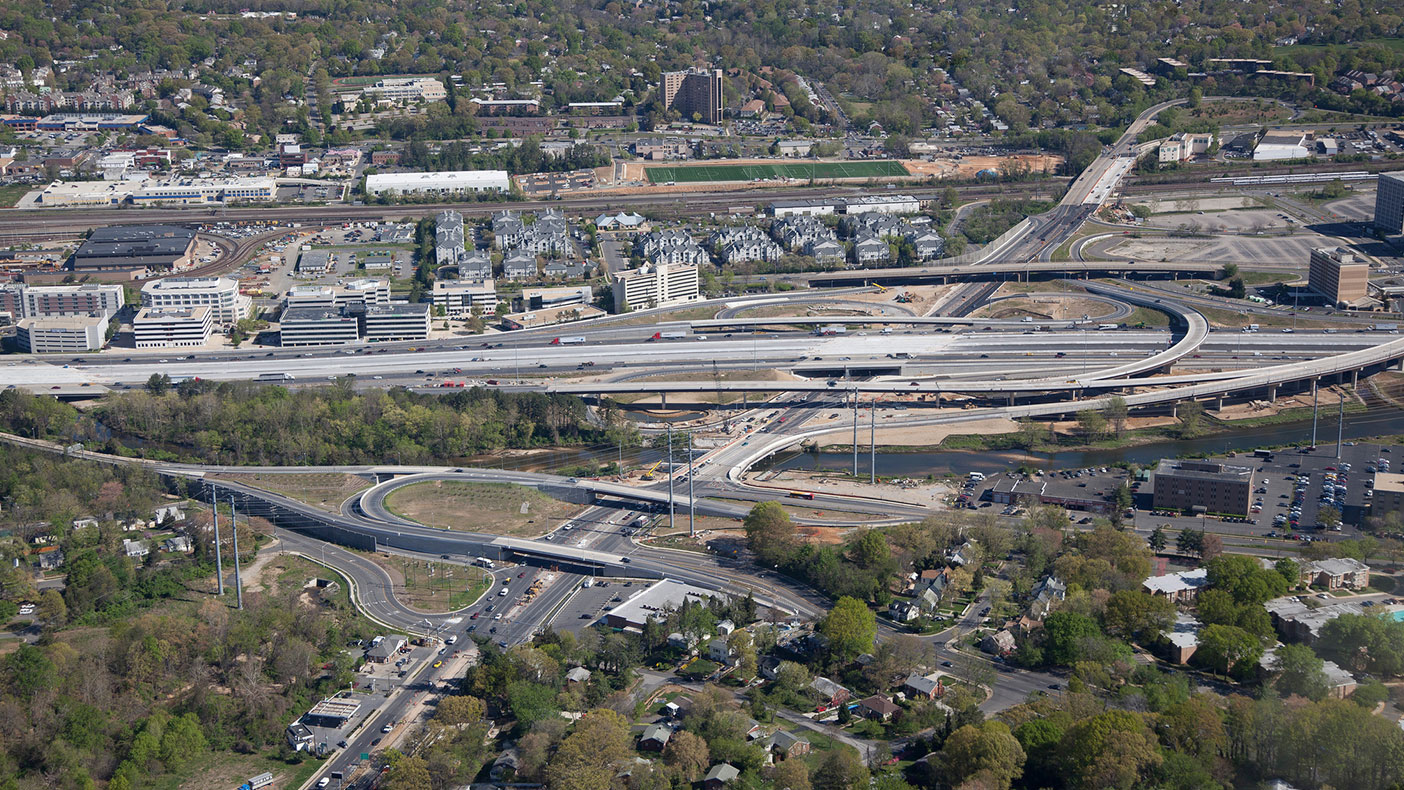

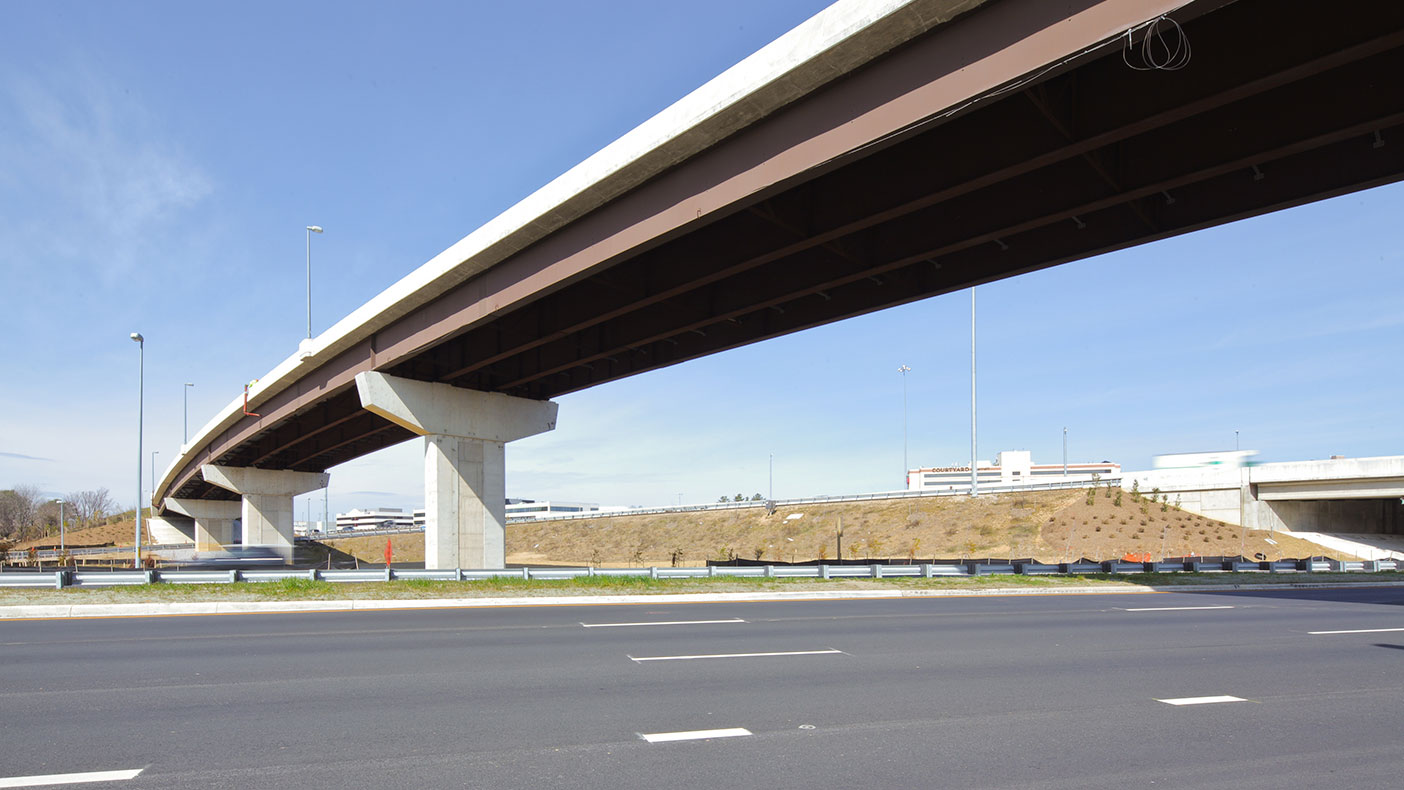

The highly constrained area with challenging soil conditions included an urban, low speed interchange, a three-level ramp bridge, and low maintenance jointless bridges.

The highly constrained area with challenging soil conditions included an urban, low speed interchange, a three-level ramp bridge, and low maintenance jointless bridges.

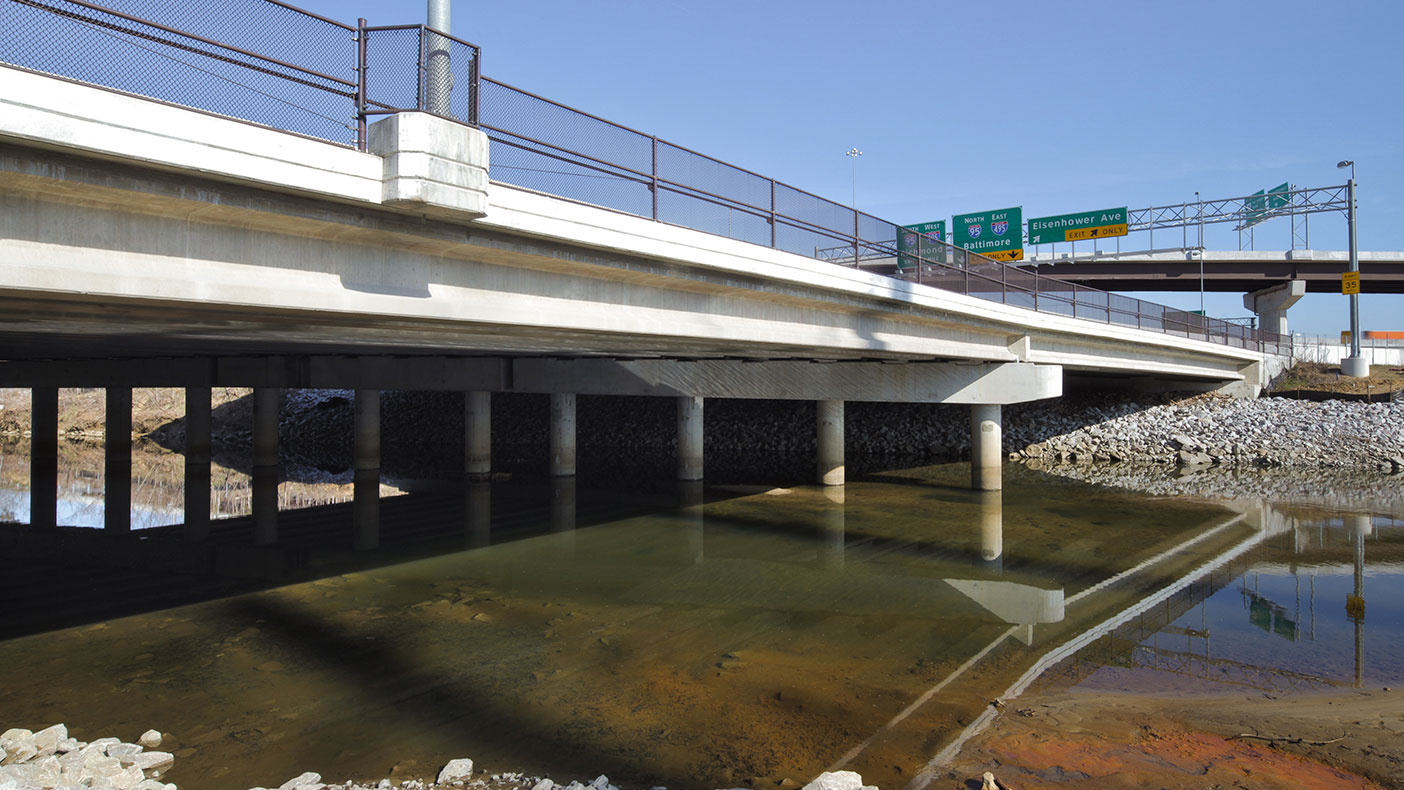

The Telegraph Road Bridge over Cameron Run replaced the old structure and was constructed in three stages in order to maintain traffic.

The Telegraph Road Bridge over Cameron Run replaced the old structure and was constructed in three stages in order to maintain traffic.

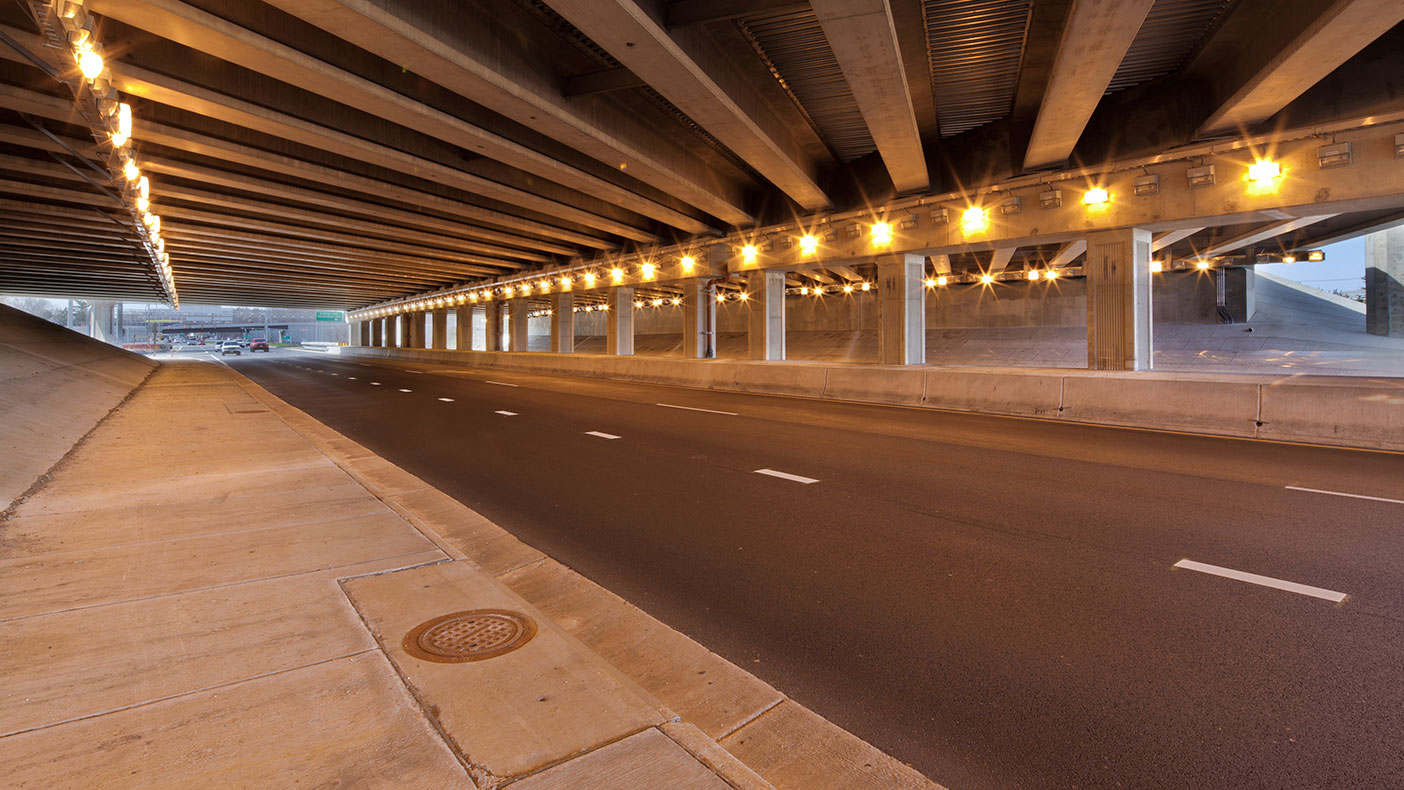

Existing 1-95/1-495 mainline bridges, which did not meet vertical clearance requirements and had been damaged by truck impacts over the years, were raised by as much as five feet.

Existing 1-95/1-495 mainline bridges, which did not meet vertical clearance requirements and had been damaged by truck impacts over the years, were raised by as much as five feet.

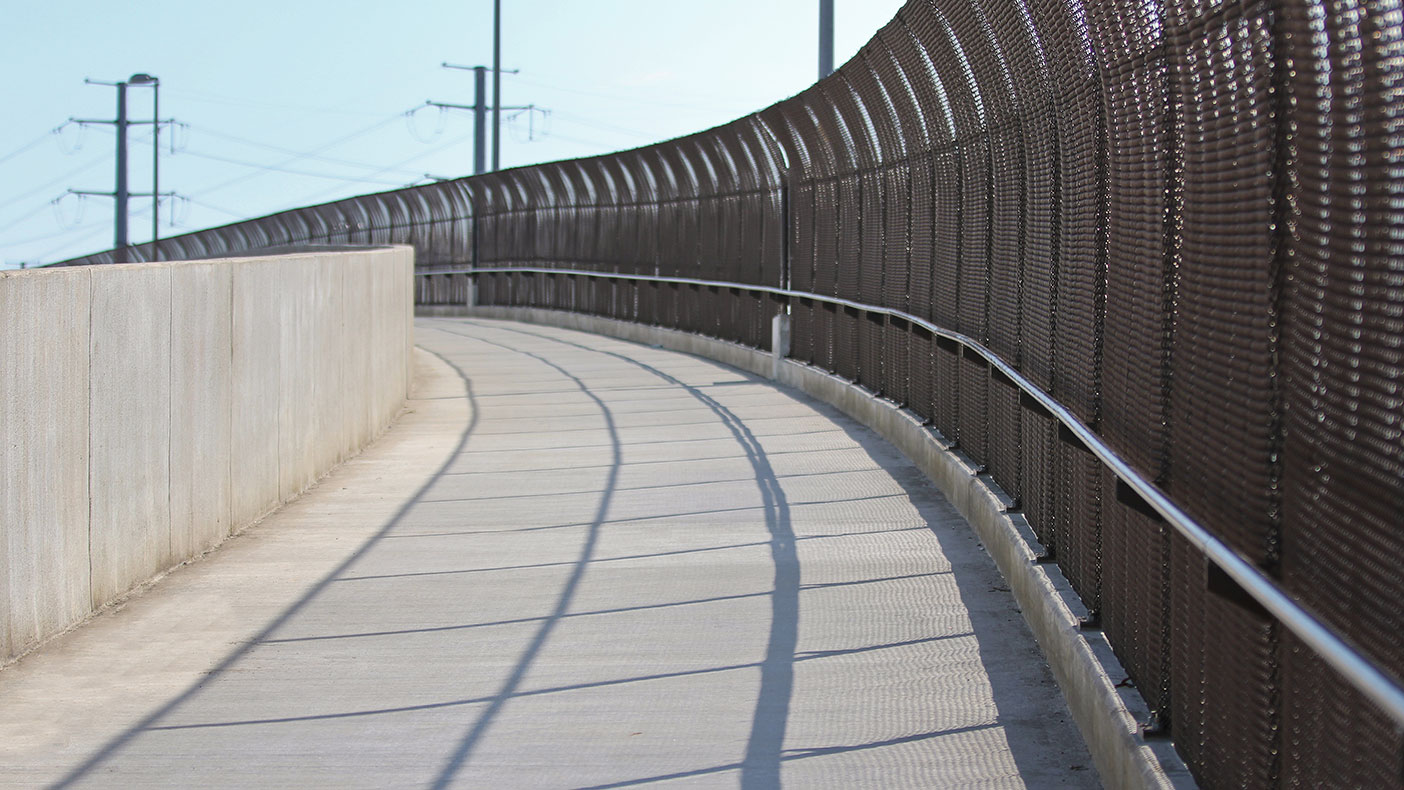

Protected pedestrian walkways on both sides of I-95 help safely connect neighborhoods.

Protected pedestrian walkways on both sides of I-95 help safely connect neighborhoods.

Impacts to congested transit facilities was avoided or minimized to the full satisfaction of the Washington Metropolitan Area Transit Authority.

Impacts to congested transit facilities was avoided or minimized to the full satisfaction of the Washington Metropolitan Area Transit Authority.

Client
Virginia Department of Transportation
Location
Northern Virginia
Markets
Transportation
Mileage
2.5 miles
Cost
$236 million
Completed
2012
Region
Mid-Atlantic

The I-95/I-495/Telegraph Road Interchange and Mainline Reconstruction project was the largest single design-bid-build construction contract ever awarded by the Virginia Department of Transportation (VDOT). The project involved the widening and complete reconstruction of 2.5 miles of Interstate I-95/I-495, as well as the construction of nine new bridges and two bridge widenings. This project is the westernmost portion of the overall Woodrow Wilson Bridge megaproject.

Our designers improved local roadway networks while avoiding and minimizing impacts to commercial buildings, residential properties, and the Cameron Run Stream Valley. We prepared advanced utility relocation, ground improvement recommendations, and advanced intelligent transportation systems and traffic management systems, which enabled VDOT to relocate major transmission towers; microtunnel private and public utility crossings of I-95/I- 495; and construct lightweight fill materials with a monitoring program before advertising the project to the public. We also helped create a safe and comfortable residential area by including trails that safely connect neighborhoods on both sides of I-95.

Largest

VDOT design-bid-build construction contract

Awards

  • Transportation Engineering Award

    Virginia Transportation Construction Alliance

  • Engineering Excellence Honor Award

    ACEC Metropolitan Washington
